Prime-Line® 3-11/16″ Hole Center Steel Sliding Patio Door Mortise Lock
Original price was: $13.98.$11.04Current price is: $11.04.
- Safe Payments, the Smart Choice
- Quality and Affordability Combined
- Free Shipping, No Compromise on Quality
- Secure Shopping Starts with Safe Payments

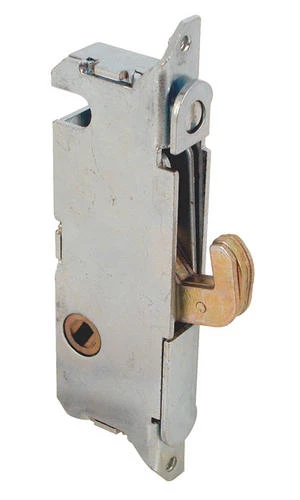

Prime-Line® has been supplying repair and replacement parts for windows and doors since 1978. This patio door lock from Prime-Line® is constructed from steel and installs easily into your door stile with its mortise-style mounting. It features a 45-degree keyway when the hook is in the locked position as well as a spring-loaded, adjustable hook projection for versatile installation options. This particular model fits any sliding door using a W&F manufactured handle.
Brand Name: Prime-Line
Features
- Durable steel housing and hook
- 45° keyway with spring-loaded adjustable hook projection
- Mortise-style installation
- 3-11/16″ hole center on round-end faceplate
- Used by W&F
- Includes 1 lock per package

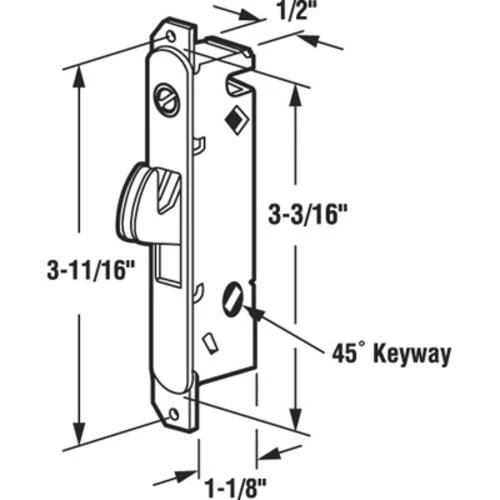

- Mortise lock dimensions: 1/2″ W x 3-11/16″ hole center x 1-1/8″ D
| Color/Finish | Mill Finish |
|---|---|
| For Use With | Sliding Patio Doors |
| Includes | 1 mortise lock, 3-11/16 inch hole center, 45 degree keyway, Adjustable hook projection, Round faceplate, Square corners |
| Manufacturer Warranty | 1 year |
| Material | Steel |
| Overall Depth | 1-1/8 inch |
| Overall Height | 3-13/16 inch |
| Overall Width | 1/2 inch |
| Product Type | Patio Door Locks |
| Shipping Dimensions | 0.65 H x 3.75 W x 7.35 D |
| Shipping Weight | 0.28 lbs |
